Hem » Produkter » LED och drivdon » Contour Lighting » Lucoline » Lucoline Light green, PMS 7488C, 1186 mm

Lucoline Light green, PMS 7488C, 1186 mm

LucoLINE® border tubing/contour lighting. Light green PMS 7488C , 30mm (W) x 45mm (H) x 1186mm

Läs mer om varan under fliken "utförlig beskrivning" nedan.

Artikelnamn: Lucoline Light green, PMS 7488C, 1186 mm
Artnr: L-LG-1186
Dokument (2)

Art. nummer & skylttyp

Artnr: L-LG-1186

Utförlig beskrivning

LucoLINE Light green, PMS 7488C, 1186 mm, 5 W p.m.

• 5 year extended warranty*
• Bright and consistent illumination through advanced optics
• IP67 condensation proof. Protection class IP66
• UV stable
• Cuttable every 55
• Cut section can be reused
• Breather filet
• Quick and easy install
• Safe to touch with zero shock risk
•The most reliable border tubing in the industry
• Long (> 80.000hrs) and maintenance-free life
• Runs up to 38 meters on only one power supply
• Fast and easy installation

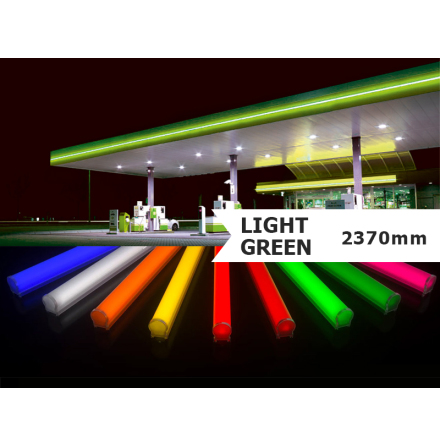

Lucoline® is designed to be used in architectual linear accent lighting applications such as petrol station canopies, building outlines, interior accents etc. LucoLINE® is the most innovative border tubing in the industry.

Lucoline® uses advanced optics to create an even, bright, illumination in a 30 mm extruded profile. It has a condensation proof design with an integrated breather filter a and silicon coated aluminium PCB’s in an aluminium carrier profile.

Lucoline® is designed to be installed quickly and easily on any building structure surface. It has a plug-and play IP67 JSTconnector system. Lucoline® is cuttable every 55 mm and is easily resealable.The remaining cut piece can be used elsewhere in the installation, thus minimizing waste and optimizing material use.

Please note that the colors you see on the screen may slightly differ from actual colors. For a more accurate representation of colors, please refer to a pantone® book.

Specifikationer

• Color: PMS 7488C Light green • Dimentions: 30mm (W) x 45mm (H) • Length:1186mm • Cuttable every 55mm • 5 year extended warranty* • Housing material in extruded PMMA or PC • Mounting clips in UV stabilized polycarbonate • Mounting clip pull force >17kgs • Mounting clip shear force >30kgs • JST JWPF IP67 connectors • Constant Current Technology • IP67 condensation proof. Protection class IP66 • Operating temperature -300C ~ +600C
Artnr: L-LG-1186
